Shenzhen Yetnorson Technology Co., Ltd/Yetnorson Antenna Co., Limited
2 Years
| Ask Lasest Price | |
| Brand Name : | Yetnorson |
| Model Number : | YNX-TV-C0016 |
| Certification : | FCC |
| Price : | $3.87/pieces 2-99 pieces |
Electrical Specifications | ||
Frequency Range (MHz) | 170-240/470-862 | |
Input Impendence (Ω) | 75 | |
Gain (dBi) | 30 | |
Consumption Electric(MA) | 20 | |
Supply Voltage(V) | 5 | |
V.S.W.R | ≤1.5 | |
Mechanical Specifications | ||
Antenna Length (mm) | 330/230 | |
Antenna Width (mm) | 300/200 | |
Cable (mm) | 3000 or as customer's requirements | |

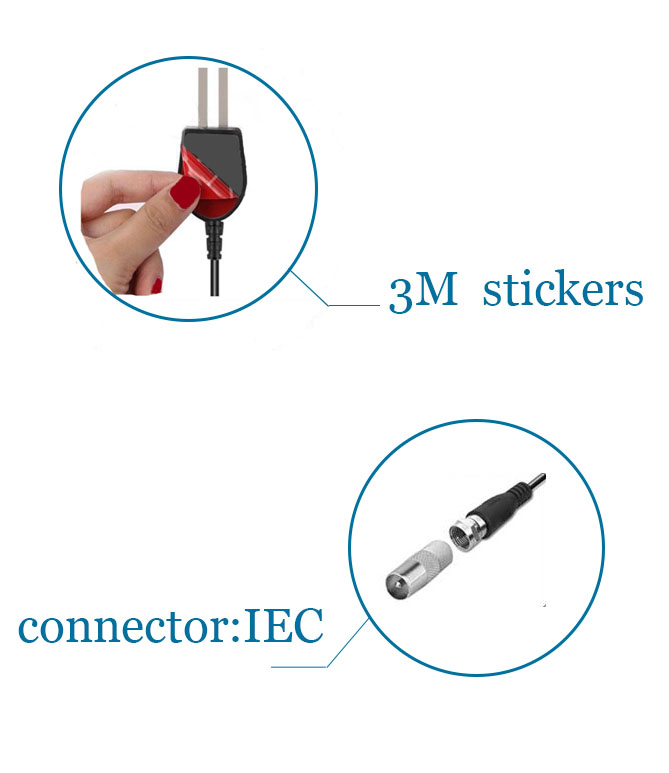

Connector type | F or IEC | |
Mounting | Paste | |
Gross Weight(g) | 30 | |
Use demonstration
US or EU Standard charger (For option, Charger price please negotiate with our Salesmen)
✿Specifications:
Working Frequency : VHF(170-240Mhz) UHF(470-860Mhz) Compatible with
720p, 1080i, 1080p/ ATSC
Impedence : 75 Ω
LNA Gain : 30dBi
Connectors : F Male
Reception Range: 75 miles
Size:330*300*0.6mm

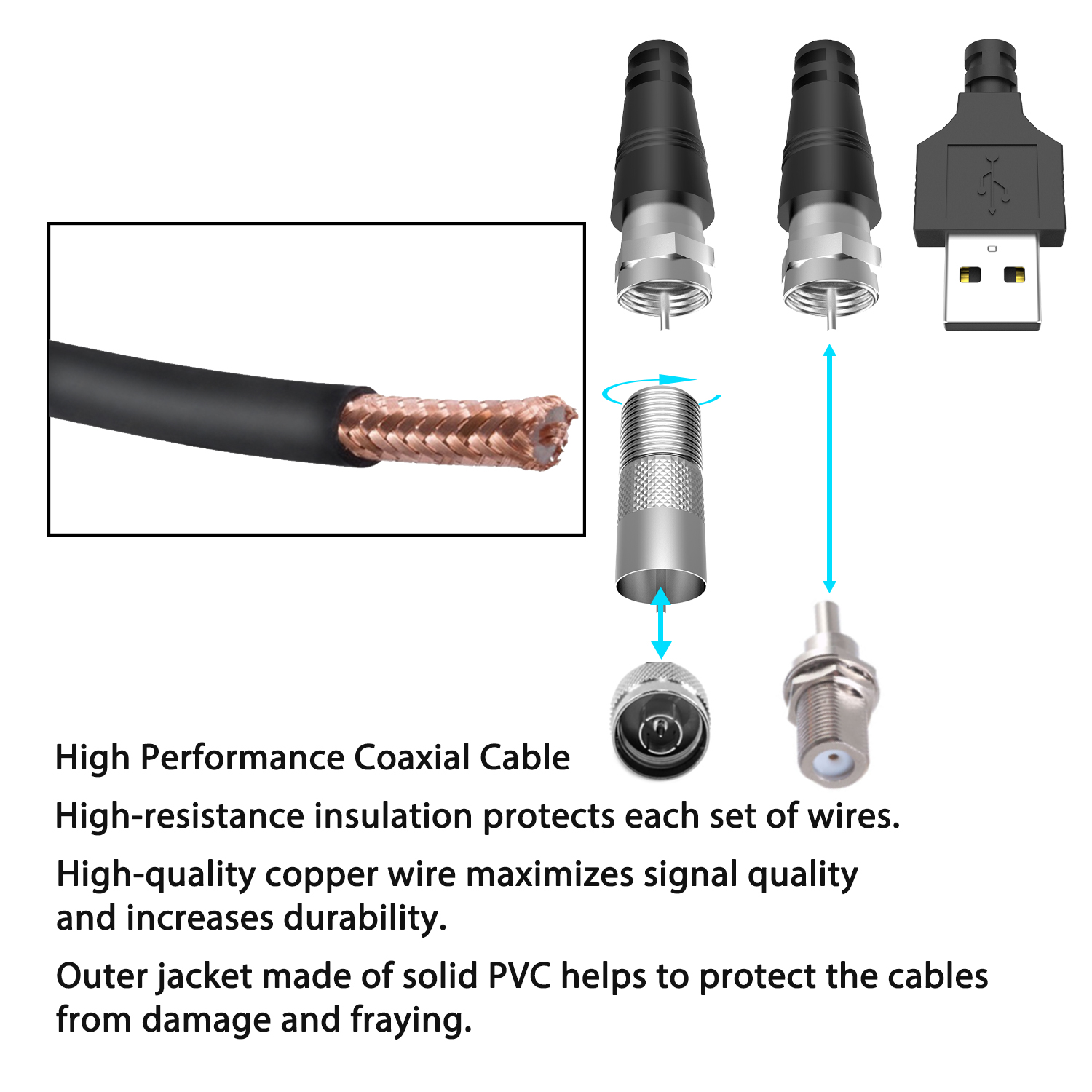

Cable : 1.5C-2V / Black L=5M
Voltage : 5V
✿Before purchasing our antenna please visit
https://www.tablotv.com/tools/ (only support North Americian area to check) to make sure which HDTV channels can you get
.
You can only receive channels within the 75 mile radius and
mountainous and heavily treed areas will reduce the range
considerably.
1) Connect the coaxial cable on the antenna to the amplifier.
2) Place the antenna, preferably on a window or as high as
possible.
3) Connect the HDMI cable from the amplifier to the TV.
4) Go to input on your TV and make sure it is set for TV
5) Go to the menu on your TV and make sure it is set for "air" or
"antenna", whichever you TV menu has.
6) In the menu on your TV go to "Scan for Channels" or "Channel
Scan" etc., select "ok" and scan. This may take up to 20 minutes to
complete.
✿Troubleshooting tips:
1) If after scanning for channels you do not receive any channels
move the antenna to a different location and do another channel
scan.
2) Make sure your input is set to TV
3) Check all connections
If after doing all the above correctly and you are still unable to
receive channels, Please email us.
✿Accessories in Packing list:
1. Indoor HDTV antenna with 2+1=3 meter coax cable
2. . Detachable Amplifier

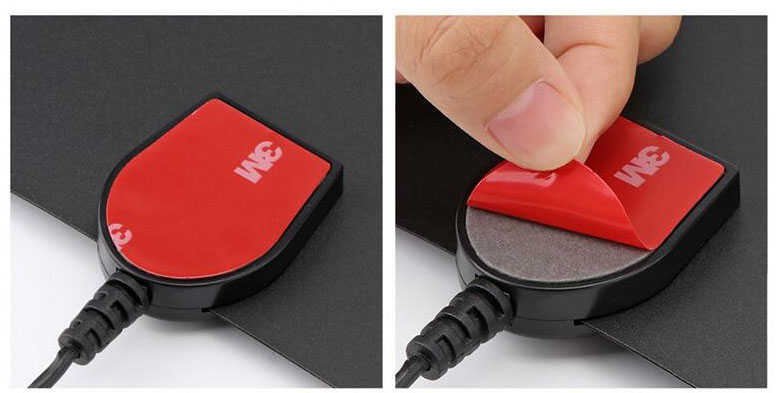

3. Stickers * 2 pcs
4. User manual
5. US or EU standard charger head ( you can place order on this
link directly, but the charger not in shipping package, if you need
charger, please contact us to get the charger price)
|
|
