10cm jumper cable rg1.13 with SMA female to U.fl IPX connector
cable
The advantage of rg1.13 with SMA female to U.fl IPX connector
IPEX interface SMA-1.13 coaxial switch wiring
Connector type: SMA female pin (external screw-PIN), and our SMA
antenna connection
Feeder: 1.13 grey line
For SMA interface and no internal pluggable interface/AP wireless
router/network card
Specifications of rg1.13 with SMA female to U.fl IPX connector
SSmall ter
Cable Type(Name) | IPEX -SMA female RG1.13 cable |
Cable Length | 150mm (Customized Length Available) |
Operating Frequency | DC0-3GHz |
VSWR | ≤1.20 @DC-3GHz |
Durability | ≥500 cycles |
Waterproof Rate | IP68 |
Operating Temperature | 45 °C-85 °C |
Parts Name | Material | Plating |
Body | Brass | Ni |
Insulator | PTFE | — |
Inner Conductor | Phosphor Bronze | Au |
Coupling Nut | Brass | Ni |
Ferule | Annealed Copper | Ni |
Bandwidth 100MHZ |
Product Name | RF pigtail cable with Connector |
Cable | RG1.13, RG178, RG1.32, RG0.81 |
Connector | SMA female-Ipex (Other Available Connector: MCS/MMCX/GSC/MCD/MCG
and etc) |
Conductor | Bare copper |
Jacket | PTFE |
Gender | Male to male, Male to female, female to female can be customized) |
Application | Mobile, Cellphone, Wifi, Blutooth device, PC, GSM, GPRS, GPS |
Frequency | DC 0 to 6GHz (VSWR: 1.5Max.) |

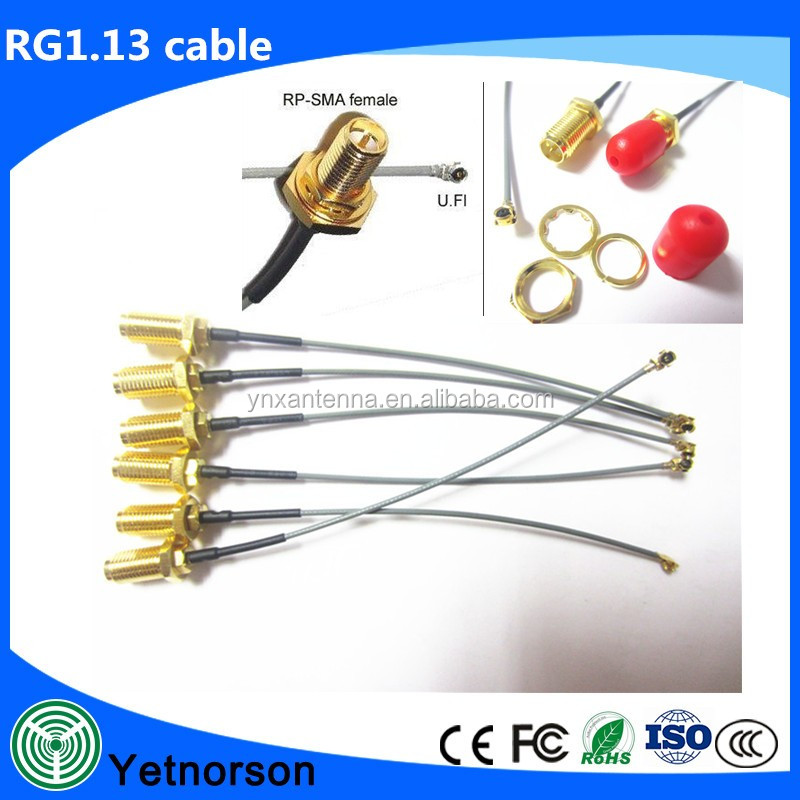

-Product pictures of rg1.13 with SMA female to U.fl IPX connector
According to according to customer needs, can be equipped with the
following specifications MINI
COAXIAL CABLE (0.81mm, 1.13mm, 1.32mm, 1.37mm, 1.78mm)
Jacket color : black, white, gray, brown , etc. and match a variety
of RF connectors
(RF CONNECTOR: SMA SSMA MCX MMCX, SMB, BNC, TNV, N prime ) ,
The length of their products according to customers' needs to be
fixed . Products comply with ROHS standard
1. We can guarantee the product quality within one years
2. If parts cannot work, we will return payment or replacement to
you.
3. Any items must be returned in their original condition to
qualify for a refund or replacement.
4. The buyer is responsible for all the shipping cost incurred
